Ekobar Elektronik San ve Tic Ltd Sti
|
Ekobar Elektronik San ve Tic Ltd Sti |
|
|
|
|||

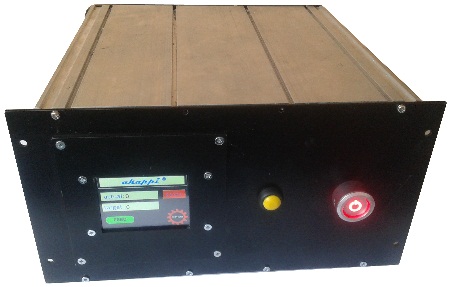

-Isolated Aluminium body , stainless steel parts . -Industrial body design and seperate electronic control box makes the system usable in every position, in minimum space - Finger squeesing protection system --Moduler system of functions -Sweep mode -tamp and blow -Label roll diameter 20 cm ve 30 cm -very simple adjusting the label size -Can be used vertical and horizontal - Counter function -Touch screen to see all the details lice counter -Low Label roll , Labels finished alarm |
|
|||
 |
 |
 . .  . . .  |
||
TAMP |
SWING ARM | TRANSPARENT LABEL CONICAL BUCKET LABELLING ..PNÖMATİC TAMP |
||
|
||||
|
Label applicators and parts are manufactured inhouse.. | |||
   |
||||
 .  .  |
||||
.
SPECS |
||||||
2 INCH |
4 INCH |
6 INCH |
||||
| ETIKET YAPISTIRMA | : | sweep type |
||||
| BODY | : | Aluminium body
|
||||
| LABEL WIDTH | : | 12 -55 mm
|
20 -115 mm
|
50 -150 mm
|
||
| MAX. LABEL ROLL | : | 200 mm / 300 mm
|
||||
| APPLICATING SPEED | : | 300mm / sec (18m/min) , 600 mm / sec (36m/min)
|
||||
| ELEKTRONIC | Step motor
|
|||||
| LABEL LENGTH | : | NO LİMİT
|
||||
| ENERGY | Elektronic 220 Volt , 50 Hz
|
|||||
| : | TOUCH SCREEN DISPLAY
|
|||||
| SPEED ADJ | YES |
YES |
YES |
|||
| SENSOR DELAY | YES |
YES |
YES |
|||
| TOUCH SCREEN | YES |
YES | YES |
|||
| EMERGENCY STOP | YES |
YES |
YES |
|||
| ENCODER | ENCODER CAN BE USED | |||||
| STOP , ERROR SIGNAL WHEN LABEL BREAKS | ||||||
| ÇEVRE SARTLARI | 10-35 C/ 30-80%HUMIDITY |
|||||
| OPSİYONLAR | ||||||
LABEL END , etiket / rulo koptu alarmı |
||||||
LOW LABEL STOCK |
||||||
| : | ERROR SIGNAL |
|||||
